Imperial Four Column

The inch four-row tapered roller bearing is one of the main roller bearings. This type of bearing has a large radial and axial capacity, and the radial load capacity is about three times that of a single-row tapered roller bearing. It can withstand large bidirectional axial loads, but the limit speed is low. It can limit the axial displacement of the shaft (or housing) in both directions within the range of the bearing axial clearance, so it can be used for bidirectional shaft positioning. The diameter and axial clearance of the bearing can be adjusted by changing the thickness of the spacer between the inner and outer rings. Mainly used for the work rolls of hot rolling mills and cold rolling mills, as well as the rolls of blasting machines.

Category：

Tapered Roller Bearings

WhatsApp: +8613869509899

Email: liu@changhebearing.com

Message

Product Description

Product Details

Bearing Number	Dimensions(mm)
4T-HM903249/HM903210	44.45×95.25×30.958
48680DW/4862/48620D	139.725×200.05×160.338
47T563927AWH/DPGC	229.4×393.7×269.875
47T513627AWF/DPGCS	254×358.775×269.875
511860	279.4×393.7×269.875
532968	355.6×457.2×252.413
EE127097D/EE127135-127136D	241.478×349.148×228.6
EE231475D/EE231975-231976D	374.65×501.65×260.35
EE531201D/EE300/301XD	508×762×463.44
EE649241DW/EE649310/64	609.6×787.4×361.95
EE655271W/EE345/346D	685.8×876.3×355.6
EE65527W/EE345/346D/P	685.8×876.3×355.6
HM259049D/10/10D	317.5×447.675×327.025
HM266449DW/HM266410-HM266410CD	384.175×546.1×400.05
K18790/K18720B+K28580/K28521/D	50.8×92.075×54.381
KHM218248/KHM218210/DB	90×147×127
K387A/K382B+K3979/K3920/DB	96.838×112.712×61.925
K95525/K5925-3	133.35×234.95×63.5
KEE127097D/K127135-K127136D	241.478×349.148×228.6
KEE135111DW/K135155-135156D	279.4×393.7×269.875
LM239530T/46TD/49T/1	181.808×259.969×161.925
LM247748D/10/10D	244.475×327.025×193.675
LM247748DW/10/10D	244.475×327.025×193.675
LM247748DW/LM247710-LM247710D	244.475×327.025×193.675
LM451349DW/10/10D	266×355×228.6
LM451349DW/310/310D	266.7×355.6×228.6
LM451349DW/LM451310-LM451310D	266.7×355.6×230.188
LM761648DW/LM761610-LM761610D	341.312×457.098×254
LM761649DW/10/10D	343.052×457.098×254
LM761649DW/10/10/HC	343.052×457.098×254
LM76164DW/610/610D/P	343.052×457.098×254
LM761649DW/LW761610D	343.052×457.098×254
LM716649DW/LM761610-LM761610D	343.052×457.098×254
LM769349D/LM769310-LM769310D	431.8×571.5×336.55
LM274049DW/LM274010-LM2740010D	508×695.325×419.925
M238849D/M238810-M238810D	181.325×269.875×211.138
M204648DW.611.611D	198.438×284.163
M240631T.644T.647T.	200.819×284.163×239.715
M249748D/M249710-M249710D	254×358.775×269.875
M249710C2/ORM249748D	254×358.775×289.875
M252349/M252310-M252310D	269.875×381×282.575
M252349/10/10D	269.875×381×282.58
M252349D/10/10D	269.875×381×282.58
M255449DW/M255410-M25540D	288.925×406.4×298.45
M257149DW/110/110D	304.8×419.1×269.875
M257248DW/10/10D	304.902×412.648×266.7
M257148/M257210-M257210D	304.902×412.648×266.7
M274149D/110/110D	501.65×711.2×520.7
M274149DW/M274110-M27410D	501.65×711.2×520.7
M282249DW/M282210/M2	682.7×965.3×701.676

Factory Appearance

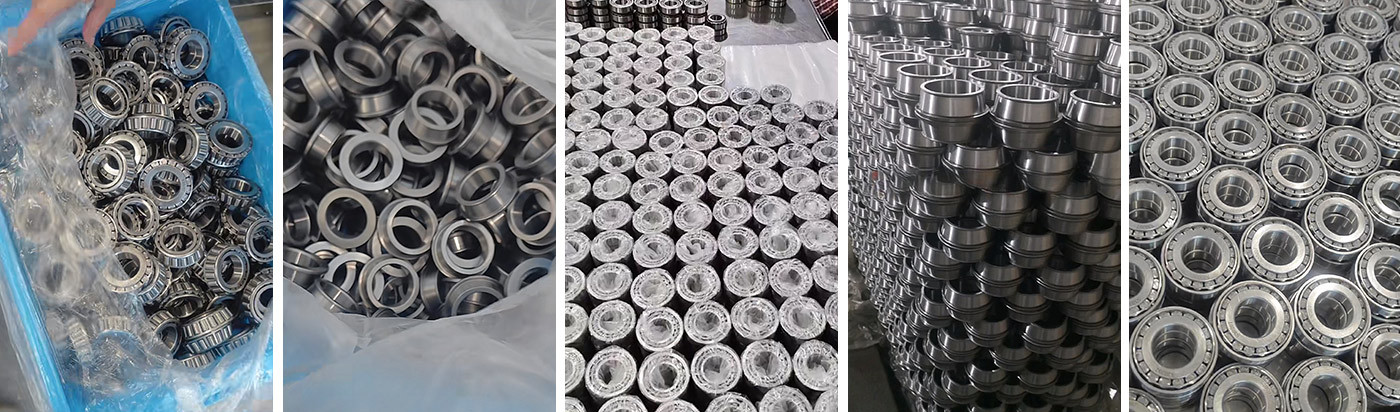

Packing and shipping
