Thrust Spherical Roller Type 29000

Cylindrical roller thrust bearings can be split into thrust cylindrical roller and cage assemblies, shaft washers and races. Such bearings can withstand large axial loads in one direction, but cannot withstand radial loads, and they do not have self-aligning capabilities. Mainly used in heavy machine tools, high-power marine gearboxes, oil drilling rigs, vertical motors and other machinery.

Category：

Thrust Roller Bearings

WhatsApp: +8613869509899

Email: liu@changhebearing.com

Message

Product Description

Product Details

Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers .

Bearing Number	Dimensions （mm）
29236	180×250×42
29238	190×270×48
29240	200×280×48
29244	220×300×48
29244E	220×300×48
29248	240×340×60
29248E	240×340×60
29252	260×360×60
29252E	260×360×60
29256	280×380×60
29256E	280×380×60
29260	300×420×73
29260E	300×420×73
29264	320×440×73
29264E	320×440×73
29268	340×460×73
29268E	340×460×73
29272	360×500×85
29272E	360×500×85
29276	380×520×85
29276E	380×520×85
29280	400×540×85
29280F3	400×540×85
29280E	400×540×85
29284	420×580×95
29284E	420×580×95
29288	440×600×95
29288E	440×600×95
29292	460×620×95
29292E	460×620×95
29296	480×650×103
29296E	480×650×103
292/500	500×670×103
292/500E	500×670×103
292/530	530×710×109
292/530E	530×710×109
292/560	560×750×115
292/560F3	560×750×115
292/560E	560×750×115
292/600	600×800×122
292/600E	600×800×122
292/630	630×850×122
292/630E	630×850×122
292/670	670×900×140
292/670E	670×900×140
292/710	710×950×145
292/710E	710×950×145
292/750	750×1000×150
292/750E	750×1000×150
292/800	800×1060×155
292/800E	800×1060×155
292/850	850×1120×160
292/850E	850×1120×160
292/900	900×1180×170
292/900E	900×1180×170
292/1060	1060×1400×206
29317	85×150×39
29318	90×155×39
29318X2	90×155×30
29320	100×170×42
29322	110×190×48
29324	120×210×54
29326	130×225×58
29326E	130×225×58
29328	140×240×60
29330	150×250×60
29332	160×270×67
29334	170×280×67
29334X3	170×290×73
29336	180×300×73
29338X3M	190×320×78
29338	190×320×78
29340	200×340×85
29340/YA	200×340×85
29344	220×360×85
29344E	220×360×85

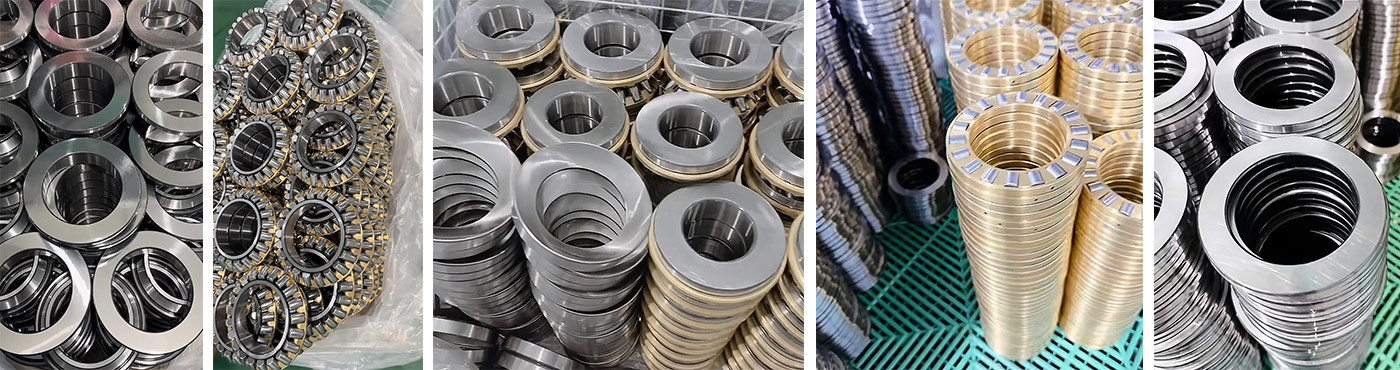

Factory Appearance
